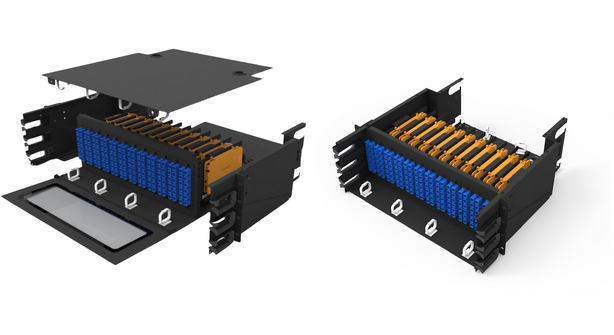

4U Rack Mount Sliding Type ODF 144F

The FiberCore rack-mount Optic Distribution Frame (ODF) is designed to fit seamlessly into standard 19” server cabinet installations. This 4U ODF model accommodates up to 144 cores, terminated via SC simplex connectors and adapters, and is scalable up to 288 cores with modular expansion.



Product Highlights:

  • Supports up to 144 fibers (SC, LC, FC, ST adapters)
  • Sliding bottom box with three-section stainless steel rails
  • Waterproof cable entry for secure fiber management
  • Durable powder-coated cold-rolled steel construction
  • Optional adapter panels, adapters, and pigtails
  • Scalable modular design for expansion up to 288 fibers


Product Features:

  • Standard 19“
  • 4U upto 144F using SC adapter
  • Mounting Bracket
  • Three section stainless steel rails, independent, & sliding bottom box
  • Waterproof connector cable entry
  • 175-type adaptor plate
  • Different plates and adapters can be loaded (LC/SC/FC/ST)
  • High quality sheet metal technology and mist spray


Product Applications:

  • Data Center
  • Computer Center
  • Machine Room
  • Database


(Scroll Below for more details)

*Can be loaded upto 144 port SC or 288 port LC
For questions or ordering support, contact our sales team.
