4U Splicing patch panel

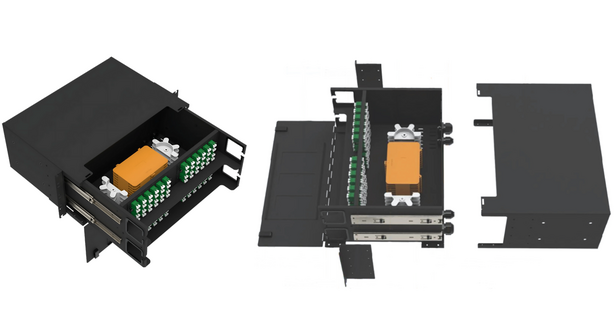

The FiberCore rack-mount Optic Distribution Frame (ODF) is a 4U, high-density solution designed for standard 19” cabinet installations. This model supports up to 192 cores, expandable to 288, with organized splicing and adapter flexibility. Built with durable steel and equipped with smooth slide-rail access and waterproof cable entry, it is ideal for data center and IT environments.



Product Highlights:

  • High-density splicing support, up to 144 fibers with SC adapters
  • Sliding bottom box with stainless steel rails
  • Supports LC, SC, FC, and ST adapter plates
  • Waterproof cable entry for secure fiber management
  • Durable powder-coated steel construction
  • Optional adapter panels, adapters, and pigtails


Product Features:

  • Standard 19“
  • 4U upto 144F using SC adapter
  • Mounting Bracket
  • Three section stainless steel rails, independent, & sliding bottom box
  • Waterproof connector cable entry
  • 175-type adaptor plate
  • Different plates and adapters can be loaded (LC/SC/FC/ST)
  • High quality sheet metal technology and mist spray


Product Applications:

  • Data Center
  • Computer Center
  • Machine Room
  • Database


(Scroll Below for more details)

*Can be loaded up to 96 port SC
For questions or ordering support, contact our sales team.
