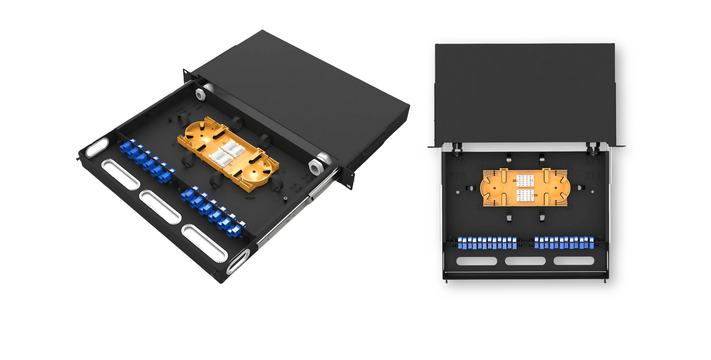

1U Optical Distribution Frame
12 Port SC Rack Mount

The FiberCore 1U Rack Mount Sliding Type Optical Distribution Frame (ODF) is engineered for seamless integration into standard 19” server cabinets. Ideal for structured fiber optic distribution, this compact ODF accommodates up to 36 cores using SC simplex adapters, providing a clean and efficient termination point for single-mode fibers.



Product Highlights:

  • Supports up to 36 fibers (SC, LC, FC, ST adapters)
  • Sliding box with stainless steel rails
  • Waterproof cable entry
  • Durable powder-coated sheet metal construction
  • Optional adapter panels and pigtails


Product Features:

  • Standard 19“
  • 1U up to 36F using SC adapter
  • Mounting Bracket
  • Three section stainless steel rails, independent, & sliding bottom box
  • Waterproof connector cable entry
  • 175-type adaptor plate
  • Different plates and adapters can be loaded (LC/SC/FC/ST)
  • High quality sheet metal technology and mist spray


Product Applications:

  • Data Center
  • Computer Center
  • Machine Room
  • Database


(Scroll Below for more details)

*Can be loaded up to 36 port SC or 72 port LC
For questions or ordering support, contact our sales team.
