CAT 5E 24AWG U/UTP Cable

SOLID CM CABLE

The FiberCore CAT.5E 24AWG U/UTP Cable is a high-performance solid copper cable designed for reliable data transmission in structured cabling systems. Built with quality materials including polyolefin insulation and a durable PVC jacket, it supports frequencies up to 350 MHz, ensuring stable and efficient network performance. Its user-friendly Reelex II packaging allows for easy handling and installation, making it an ideal choice for both commercial and residential networking applications.




PRODUCT FEATURES:

  • High performance of transmission.
  • High quality of safety property.
  • Sweep frequency up to 350 MHz.
  • Reelex II carton and easy to pull out.
  • Carton with one layer corrugated design providing sufficient strength and saving packaging space.


PRODUCT DESCRIPTION:

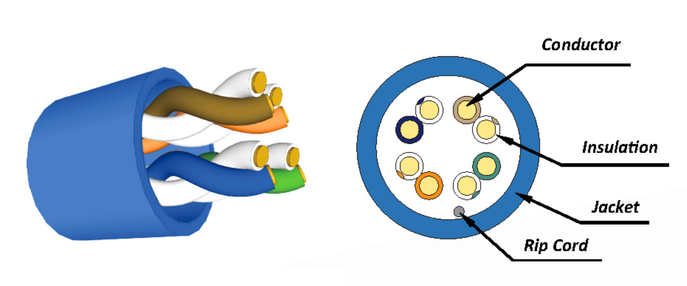

1. CONDUCTOR Size :

  • Type : Solid bare copper


2. INSULATION:

  • Type : Polyolefin (PO)
  • Diameter : 0.87±0.02mm ; 0.86±0.02mm


3. JACKET TYPE : Polyvinyl chloride (PVC)

  • 2 PG Cable Glands
  • DIN-rail mounting design for compact installations


GENERAL:

  • Cold bend test : -20°C for 4hr
  • Dielectric strength : 1.5 KV AC for 2S
  • Min bending radius : ≥ 4 times of overall diameter
  • Max pulling tension : ≤ 110 N
  • Installation temperature : 0°C to 60°C
  • Operating temperature : -20°C to 75°C


(Scroll Below for more details)

For questions or ordering support, contact our sales team.

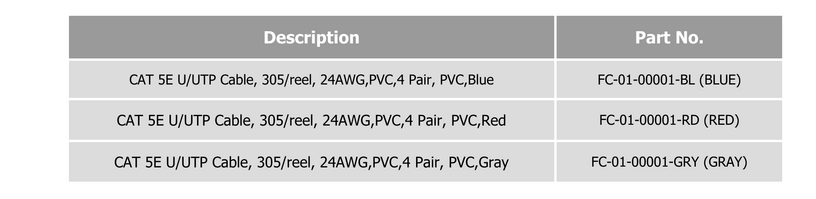

FC-01-00001
