Splitter Cassette Box

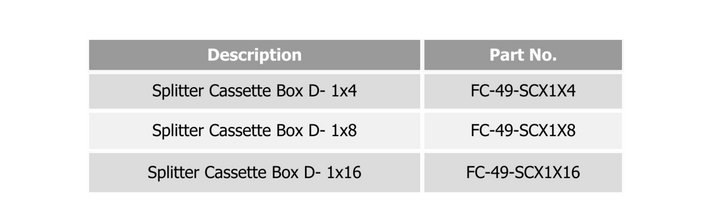

Models: FC-49-SCX1X4 | FC-49-SCX1X8 | FC-49-SCX1X16

The FiberCore Splitter Cassette Box Series provides a compact and reliable solution for fiber optic signal distribution in FTTx and telecommunication networks. Designed with ABS plastic enclosures in a modular form factor, these splitter cassettes integrate seamlessly into optical distribution frames or termination boxes. Each cassette supports steel tube type PLC splitters, offering flexible capacity options of 1x4, 1x8, or 1x16. With SC simplex adapter ports, organized internal fiber routing, and a standard white finish, the series ensures efficient signal splitting, easy installation, and long-term durability for both enterprise and telecom applications.




PRODUCT FEATURES:

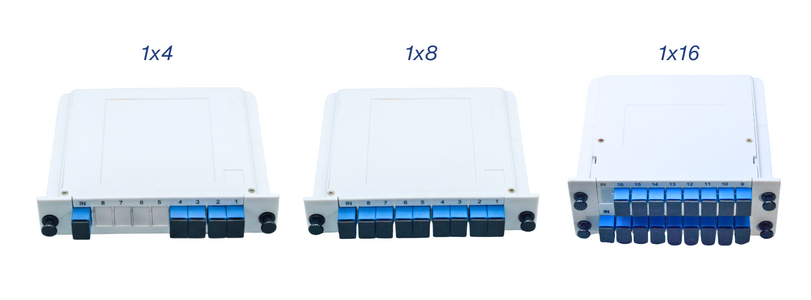

SPLITTER Cassette Box 1x4

  • Supports 1 × PLC 1:4 steel tube type splitter
  • 5 SC simplex adapter ports (1 input, 4 outputs)
  • Compact ABS plastic housing for durability
  • White color for standard integration
  • Modular design for easy installation and maintenance


SPLITTER Cassette Box 1x8

  • Supports 1 × PLC 1:8 steel tube type splitter
  • 9 SC simplex adapter ports (1 input, 8 outputs)
  • Dimensions: 126.8 × 110 × 25 mm
  • Durable ABS plastic enclosure
  • White finish for standard integration
  • Compact modular design for ODF and termination box installation


SPLITTER Cassette Box 1x16

  • Supports 1 × PLC 1:16 steel tube type splitter
  • 18 SC simplex adapter ports (1 input, 16 outputs + spare/management)
  • Dimensions: 128 × 110.2 × 50 mm
  • ABS plastic housing with durable structure
  • White color for standard integration
  • Modular cassette design for organized fiber management


PRODUCT APPLICATIONS:

  • Integration into Optical Distribution Frames (ODF)
  • Installation inside Optical Termination Boxes (OTB)
  • Fiber-to-the-Home (FTTH) and Fiber-to-the-Building (FTTB) networks
  • Telecommunication and CATV distribution systems
  • Data communication and enterprise network applications
  • Splitting and distribution of optical signals with PLC splitters



(Scroll Below for more details)
