Fibercore Optical Termination
Box (OTB) 24 Port Outdoor

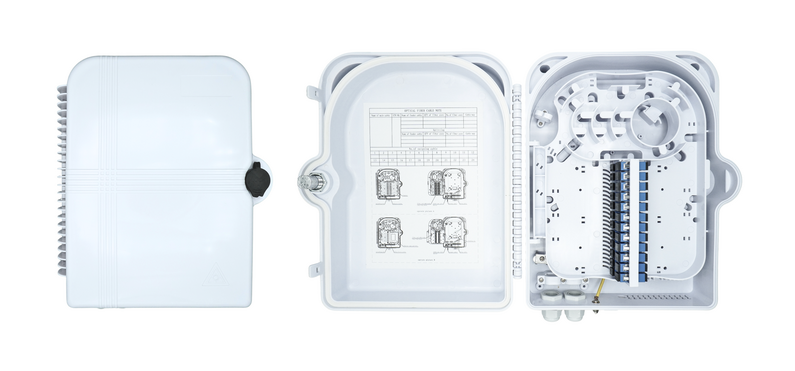

The FiberCore OTB 24 Port Outdoor Optical Termination Box is a reliable solution for FTTx applications requiring secure and high-capacity fiber distribution in outdoor environments. Supporting up to 24 SC, LC, FC, or ST adapters, it integrates fiber splicing, termination, and optional PLC splitter installation within a weather-resistant ABS enclosure. With a wall-mounted or pole-mounted design and IP65-rated protection, it ensures dependable performance and durability, making it ideal for Fiber-to-the-Home (FTTH), CATV, telecommunication, and data communication network deployments.



Product Highlights:

  • Supports up to 24 fiber terminations (SC, LC, FC, ST adapters)
  • Integrated splicing, termination, and optional PLC splitter installation
  • IP65-rated high-strength ABS enclosure, waterproof and UV-resistant
  • Optimized fiber management with bend radius ≥ 30 mm
  • Two cable entry ports supporting mid-span access without cutting the main cable
  • Twenty-four FTTH drop cable exit ports for access network deployment
  • Wall-mount or pole-mount design for flexible indoor and outdoor installation


Product Features:

  • Capacity: up to 24 fiber terminations using SC adapters
  • Supports SC, LC, FC, ST (SC simplex / LC duplex) adapters
  • Made of high-strength ABS plastic, outdoor rainfall-resistant
  • Optimized fiber management with bend radius ≥ 30mm
  • 2 cable entry ports (supports mid-span access without cutting the main cable)
  • 24 drop cable exit ports for FTTH applications
  • Flexible installation: wall-mount and pole-mount options


Product Applications:

  • FTTH (Fiber to the Home) access network
  • FTTB (Fiber to the Building) distribution
  • Telecommunication networks
  • CATV (Cable TV) networks
  • Data communication networks


(Scroll Below for more details)
