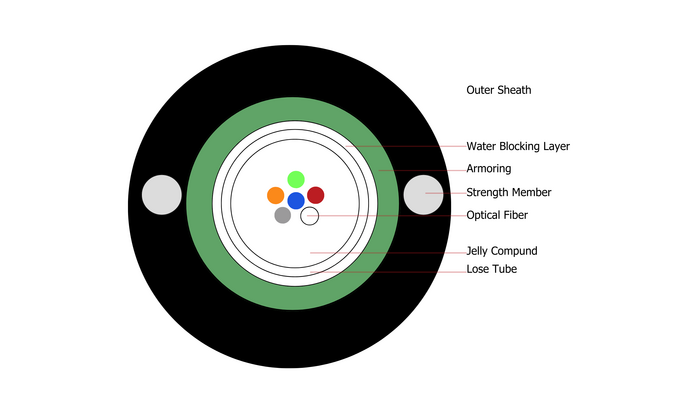

The GYXTW Outdoor Fiber Cable MM 6 core OM2 delivers reliable multimode fiber connectivity using OM2 fibers with low attenuation and high bandwidth performance. Engineered with dual steel wire strength members and corrugated steel strip armoring, this black HDPE-sheathed cable ensures rugged durability for 6-core outdoor deployments.

Product Highlights:

• Multimode OM2 fibers for reliable outdoor data transmission.
• Low attenuation at 850nm and 1300nm for stable signal performance.
• Corrugated steel strip armor protects against physical damage.
• Dual steel wire strength members improve tensile strength.
• Water-blocking tape prevents moisture penetration.
• UV-resistant HDPE jacket for outdoor durability.
• Wide operating temperature range for use in harsh environments.

Product Features:

• Multimode OM2 fibers for high-speed, high-bandwidth data transmission.
• Low attenuation at 850nm (≤2.3 dB/km) and 1300nm (≤0.6 dB/km).
• Full injection bandwidth ≥500 MHz·km at both 850nm and 1300nm.
• Dual steel wire strength members for added tensile durability.
• Corrugated steel strip armor for mechanical protection.
• Water blocking tape to prevent moisture ingress.
• HDPE outer sheath for UV and environmental resistance.
• Operating temperature range: -40°C to +70°C.
• Compact design with 6 fiber cores and a nominal cable diameter of 8.5mm.
• Flame-resistant and rugged for long-term reliability in harsh environments.



Product Applications:

• Outdoor LAN and backbone fiber installations.
• Enterprise and campus network interconnections.
• Industrial environments requiring armored, durable cabling.
• Telecommunication links for short to medium-range data transmission.

(Scroll Below for more details)
