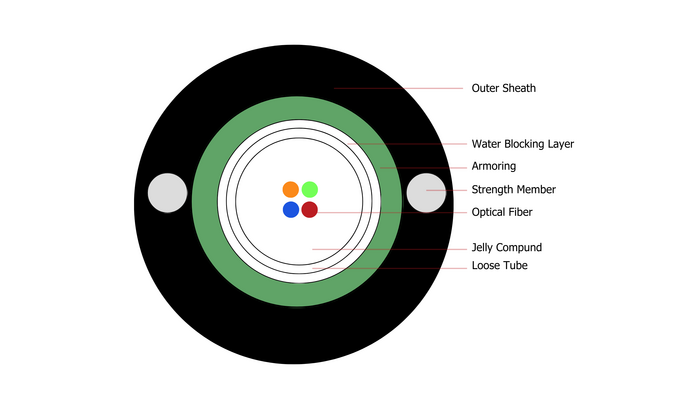

The GYXTW Outdoor Fiber Cable MM 4 Core OM2 delivers stable multimode connectivity using OM2 fibers, featuring low attenuation and high bandwidth performance. Reinforced with dual steel wire strength members and a corrugated steel strip armor, this black HDPE-sheathed cable ensures robust protection for demanding outdoor environments.

Product Highlights:

• Multimode OM2 fibers for reliable outdoor data transmission.
• Low attenuation at 850nm and 1300nm for stable signal performance.
• Corrugated steel strip armor protects against physical damage.
• Dual steel wire strength members improve tensile strength.
• Water-blocking tape prevents moisture penetration.
• UV-resistant HDPE jacket for outdoor durability.
• Wide operating temperature range for use in harsh environments.

Product Features:

• Multimode OM2 fibers for high-speed data transmission.
• Low attenuation at 850nm (≤2.3 dB/km) and 1300nm (≤0.6 dB/km).
• Full injection bandwidth ≥500 MHz·km at both 850nm and 1300nm.
• Dual steel wire strength members for added tensile durability.
• Corrugated steel strip armor for mechanical protection.
• Water blocking tape to prevent moisture ingress.
• HDPE outer sheath for UV and environmental resistance.
• Operating temperature range: -40°C to +70°C.
• Compact design with 4 fiber cores and a nominal cable diameter of 8.5mm.
• Flame-resistant and rugged for long-term reliability in harsh environments.



Product Applications:

• Outdoor LAN and backbone fiber installations.
• Enterprise and campus network interconnections.
• Industrial environments requiring armored, durable cabling.
• Telecommunication links for short to medium-range data transmission.

(Scroll Below for more details)
