The FiberCore Indoor Drop Cable GJXFH-FTTH delivers reliable single-mode fiber connectivity using G.657A2 fibers with low bending loss and flame-retardant LSZH sheathing. Designed with dual 0.5mm FRP strength members, this black flat-type cable ensures durable performance for 1F and 2F indoor installations.
Product Highlights:
- Bend-insensitive G.657A2 fiber delivers stable signal performance even in challenging outdoor pathways.
- Durable LSZH black jacket provides added protection while minimizing smoke and toxic emissions.
- Reinforced with dual FRP strength members for added durability during installation.
- Slim, lightweight design supports fast, hassle-free indoor routing.
- Easy to strip and terminate, reducing setup time for installers.
Product Features:
- G.657.A2 single-mode fiber for low bending loss and stable signal transmission.
- LSZH (Low Smoke Zero Halogen) black jacket for fire safety and reduced toxic emissions.

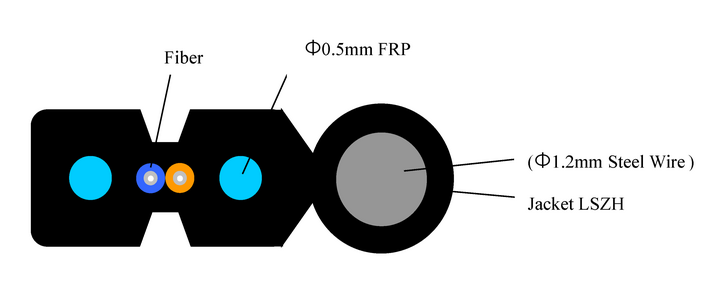

- 2×0.5mm FRP strength members for improved tensile performance
- 1.2mm embedded steel wire for added structural reinforcement and pulling strength
- Compact and lightweight design for easy routing in indoor spaces
- Easy to strip and terminate for quick, clean installations
- Suitable for 1F and 2F indoor drop applications
- Ensures consistent performance in tight routing scenarios
Product Applications:
- Telecommunications subscriber loop
- Fiber to the Home (FTTH)
- LAN/WAN networks
- CATV systems
- Outdoor fiber distribution
- Multi-dwelling unit (MDU) installations
- Optical termination and final drop points in FTTH networks
