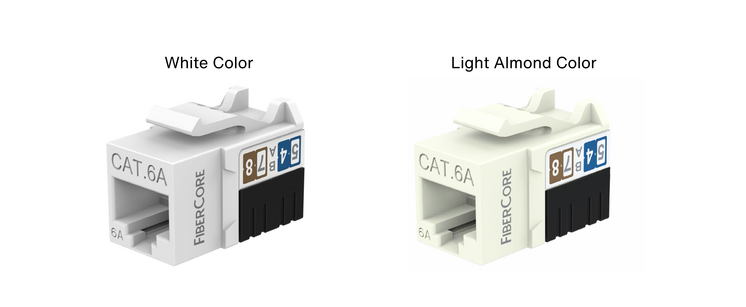

CAT 6A UTP 90° Keystone Jack

110 PUNCH DOWN TYPE

The FiberCore CAT6A UTP 90° Punch Down Keystone Jack delivers a compact and efficient solution for high-performance structured cabling systems. Designed with a 90-degree slim profile, it optimizes space in high-density installations while supporting reliable data transmission. Compatible with T568A and T568B wiring schemes and supporting 4PPoE applications, it ensures stable connectivity and easy integration into standard wall plates for modern network environments.




PRODUCT FEATURES:

  • 90-degree slim compact structure fit for high-density application or edge data center
  • Accommodates 23–26AWG solid wire with T568A & T568B wiring schemes
  • Supports 4PPoE applications
  • Compatible with Decora wall plate


MATERIAL & STRUCTURE:

  • Keystone jack housing: ABS+PC, UL94V-0
  • Jack contact bracket: PBT + Glass Fiber, UL94V-0
  • Spring pin: Phosphor bronze, 50U" Gold Plated
  • IDC house: PC, UL94V-2, white color
  • IDC contact: Phosphor Bronze, with Tin plated
  • IDC cap: ABS+PC UL94V-0, black color
  • PCB: FR4, UL94V-0


(Scroll Below for more details)
