CAT.6A U/UTP Easy Pass Through Modular Plug

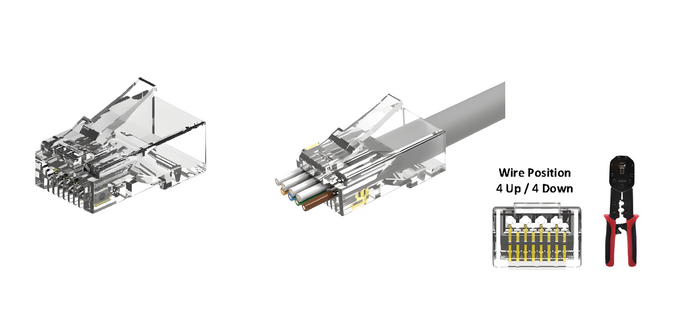

The FiberCore CAT.6A UTP Easy Pass Through Modular Plug is engineered for fast, accurate, and reliable RJ45 terminations in high-performance structured cabling systems. Featuring a pass-through design, it allows conductors to be inserted and trimmed in one step, ensuring proper alignment and reducing installation errors. Built with durable polycarbonate housing and gold-plated contacts, this modular plug delivers stable connectivity and consistent performance for data, voice, and network applications.




PRODUCT FEATURES:

  • Easy pass-through design for quick field termination and simplified assembly
  • Wire hole diameter of 1.2mm supports insulation range of 1.05 ~ 1.15mm
  • 3-prong contact blades compatible with both stranded and solid wires (23AWG ~ 26AWG)
  • 50µ” gold-plated contacts with X-ray test verification for reliable conductivity
  • RJ45 connector compliant with FCC standards


(Scroll Below for more details)
