CAT 5E UTP 180° Keystone Jack

110 PUNCH DOWN TYPE

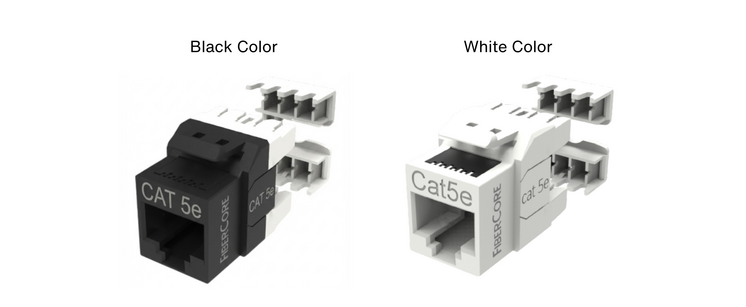

The FiberCore CAT5E UTP 180° Keystone Jack offers a reliable and efficient solution for structured cabling systems in both commercial and residential networks. Designed for 110/Krone punch down termination, it ensures secure and stable connections while supporting T568A and T568B wiring schemes. Available in black and white variants, this keystone jack features a compact snap-in design for seamless integration into patch panels, faceplates, and surface mount boxes—delivering consistent performance and easy installation.




PRODUCT FEATURES:

  • 180-degree slim compact structure fit for high-density application or edge data center
  • Compatible with T568A and T568B wiring schemes
  • Compatible with 48-port applications in 1U
  • Easily snap in and out of patch panel, and surface boxes or other application


MATERIAL & STRUCTURE:

  • Keystone jack housing: ABS, UL94V-0
  • Contact holder: ABS, UL94V-0
  • Jack contacts: Phosphor Bronze, 50U" Gold Plated
  • IDC plastic: PC, UL94V-0
  • IDC terminals: Phosphor Bronze, Tin Over Nickel Undercoat


(Scroll Below for more details)
