Fiber Optic Wall Mount Optical
Distribution Frame 24 Port SC

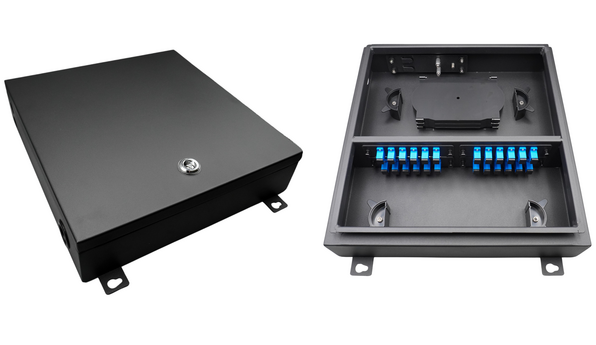

The FiberCore OTB Wall Mount 24 Port SC Optical Termination Box is designed as a compact and secure termination point for feeder-to-drop fiber connections in FTTx networks. With capacity for up to 24 SC adapters, it supports fiber splicing, splitting, and distribution while ensuring efficient cable management. Its enclosed PC+ABS housing provides IP65-rated protection against dust, water, and aging, making it ideal for both indoor and outdoor installations.



Product Highlights:

  • Compact wall-mount optical distribution frame with 24-port capacity
  • Supports up to 24 fibers with SC adapters (compatible with LC, FC, ST)
  • IP66-rated enclosure for dustproof and waterproof protection
  • Built-in splice tray and organized fiber management
  • Supports wall or pole mounting for flexible installation
  • Wide operating temperature range for indoor and outdoor use
  • Durable powder-coated cold-rolled steel construction


Product Features:

  • Powder-coated cold-rolled steel for durability and corrosion resistance.
  • Wide temperature range: -40℃ ~ +70℃.
  • IP66-rated: dustproof and waterproof.
  • Supports wall or pole mounting.
  • Cable size: φ8.5mm ~ φ18mm.
  • Capacity: up to 24 fibers.
  • Compatible with SC, ST, FC, SC Duplex adapters.
  • Built-in splice tray and fiber management for easy maintenance.


Product Applications:

  • Telecommunications backbone and access networks
  • CATV (Cable TV) systems
  • LAN & WAN enterprise networking
  • Data centers and server rooms
  • FTTH (Fiber to the Home) and FTTx deployment
  • Indoor optical cable distribution and management



(Scroll Below for more details)
